WELCOME TO THE WORLD OF SMLIGHT SLZB-06, SLZB-06M, SLZB-06P7, SLZB-06p10, SLZB-06Mg24 and SLZB-06-NO-POE - MOST ADVANCED AND POWERFULL POE ETHERNET ZIGBEE AND MATTER-OVER-THREAD ADAPTERS

NEW! SLZB-06, p7, p10 got Matter-over-Thread support!

Pay Attention:

Before purchasing, please carefully read the features of each product and choose the correct model. If, after receiving the product, you discover that you purchased the wrong one for personal reasons, you will not be able to return it.

POE cannot connect directly to the router, POE connection requires 802.3af/at 48V standard

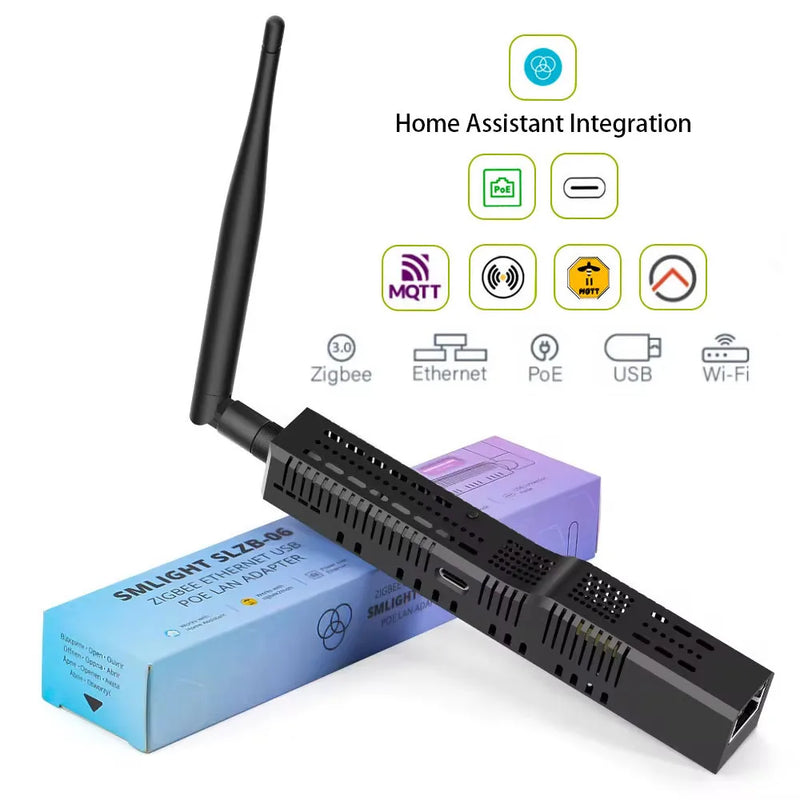

WHAT IS THE SMLIGHT SLZB-06, SLZB-06M, SLZB-06P7, SLZB-06P10 AND SLZB-06Mg24 ZIGBEE ADAPTER?

The SMLIGHT SLZB-06/06M/06p7/06p10/06Mg24 are network devices that act as a central bridge for managing communications in a Zigbee network. The SLZB-06 can also serve a Matter-over-Thread network. The devices are specifically designed for Zigbee2MQTT and ZHA Home Assistant, ensuring immediate and seamless operation. These devices have the smallest dimensions and the most comprehensive package.

KEY SPECIFICATIONS FOR SLZB-06* SERIES ZIGBEE COORDINATORS:

✅ 3 modes: Zigbee-to-Ethernet , Zigbee-to-WiFi and Zigbee-to-USB .

✅ Matter-over-Thread experimental : SLZB-06 also has experimental supports of Matter-over-Thread.

✅ Options on different Zigbee SoCs: SLZB-06 on CC2652P , SLZB-06p7 on CC2652P7 and SLZB-06M on EFR32MG21 .

✅ Pre-flashed and ready to use with Zigbee2MQTT and ZHA (plug-and-play).

✅ PoE and Type-C powering, PoE IEEE 802.3af standard support.

✅ Zigbee and Core firmware OTA update over web-interface (one-click update).

✅ Most powerful version of ESP32 chip inside: 2 cores @ 240Mhz + 16Mb memory.

✅ VPN tunneling with Home Assistant and security authorizations.

✅ Securely protected login with password to web-interface, internal whitelist firewall settings.

✅ Can cover multiple buildings with 2 or more coordinators and Zigbee2MQTT. You can install as many coordinators to work with Zigbee2MQTT+Home Assistant as you want.

✅ 15 language localization interfaces.

✅ LED control and night mode .

✅ Small and tiny design, just 22x24mm .

✅ Rich packing: Zigbee Coordinator, +5dB antenna, screws and screwdriver, adhesive tape, Type-C adapter, manual.

✅ Coordinator or Router Zigbee firmware.

✅ Standard or Opensource Core firmware.

ZIGBEE SOC SPECIFICATIONS :

⭐ SLZB-06 , ( NEW! Experimental Matter-over-Thread support! since Apr'24 ) based on CC2652P Zigbee chip with Cortex M4F 48Mhz, 88kB RAM; recommended by Zigbee2MQTT; completely good for ZHA;

⭐ SLZB-06M , based on EFR32 Zigbee chip with Cortex-M33 80Mhz, 96kB RAM – native for ZHA Home Assistant and works well with Zigbee2MQTT;

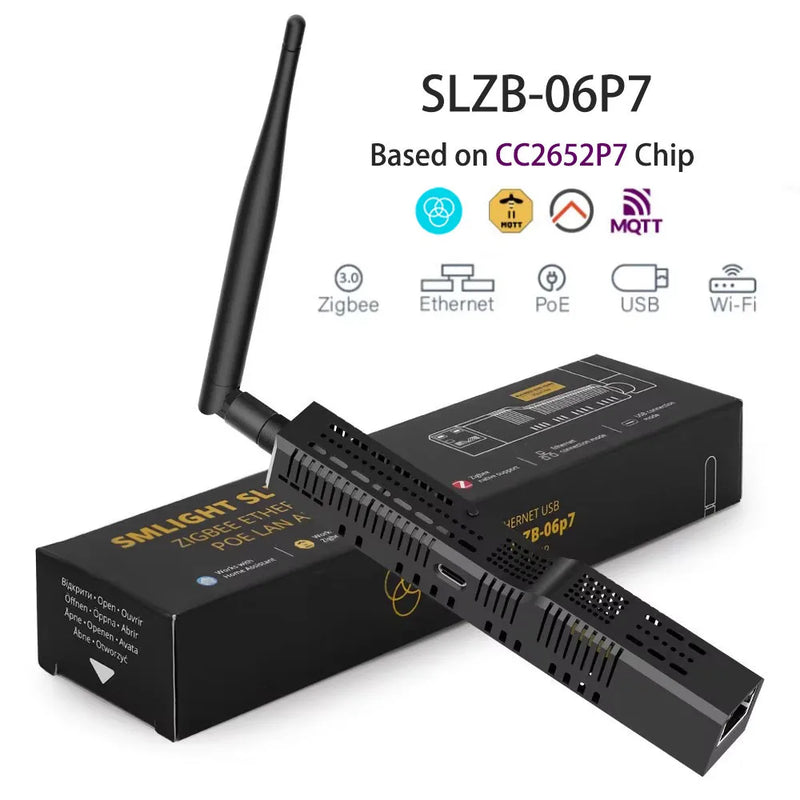

⭐ SLZB-06p7 , based on CC2652P7 Zigbee chip with Cortex-M4F 48Mhz, 153kB RAM, new for Zigbee2MQTT and for ZHA;

⭐ SLZB-06-NO-POE is the same as SLZB-06 on CC2652P , but without PoE support.

As of April 2024, SLZB-06 has experimental Matter-over-Thread support .

COMPARE DIFFERENT MODELS :

CORE FIRMWARE VIDEO REVIEW :

Have a look at Youtube 's 10 min SLZB-06 firmware video review. Click to open on Youtube.

🤝 QUESTIONS AND ANSWERS :

Q1: Do these coordinators work with Zigbee2MQTT and ZHA?
A1: Yes, all models work with both Zigbee2MQTT and ZHA.

Q2: Is it advantageous to use the SLZB-06p7 based on the new C2652P7 SoC?
A2: If you don't plan on having more than 200 Zigbee end devices, you don't need to pay extra for the CC2652P7 chip. Furthermore, the CC2652P and CC2652P7 are based on the same 48MHz Cortex-M4F processor; the only difference is the RAM.

.

Q3: Can I connect multiple adapters to the same Home Assistant instance?
A3: Yes, you can. You will need to run two or more instances of Zigbee2MQTT. Please consult the product manual for further explanation.

Q4: Can I use 24V “passive” PoE?
A4: The adapter supports the IEEE 802.3af active PoE standard. Therefore, only PoE routers and injectors that comply with this standard will work.

Q5: Can the device be used in Wi-Fi mode?
A5: Yes, you can. Simply select Zigbee-Wi-Fi mode and connect to your Wi-Fi network.

Q6: Are there any delays in Zigbee when using it over Ethernet?
A6: No, 100Mb Ethernet is actually much faster than the transmission speed used for the 115k USB serial connection.

Q7: My Home Assistant server is in the basement. Can I put the SLZB-06 in my living room and connect to it via Ethernet?
A7: Yes, this is basically the strong point of the SLZB-06: you can place your Zigbee adapter wherever you want and you don't even have to connect it to the server. It even works with remote connections from distant buildings.

PHOTO GALLERY:

OTHER DATA :

Wireless SoCs: Zigbee Texas Instruments CC2652P1FRGZR, Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols, and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios

Wireless SoCs: Core Espressif Systems, ESP32-DOWDQ5-V3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity

Connectivity​

• Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet
  controller

• 2.4 GHz WiFi up to 100 Mbps

• Zigbee 3.0 support

• +5dB SMA antenna included

· USB – USB Type-C port for data and power

· Misc – 4x user LEDs, 1x button

· Power Supply – 5V/200mA via USB or PoE

· Dimensions – 160 x 24 x 22mm

· Operating temperature: +5◦C - +35◦C

Note:

· SLZB-06 designed to work with Zigbee2MQTT or ZHA integration for Home Assistant.
